Pouring Cup
A premium grade industrial material tailored for optimal performance.
Key Features & Applications
- Iron and steel foundries
- Mould top metal entry systems
- Controlled molten metal transfer from ladle to sprue
- Casting processes requiring reduced turbulence and improved metal cleanliness
Product Overview

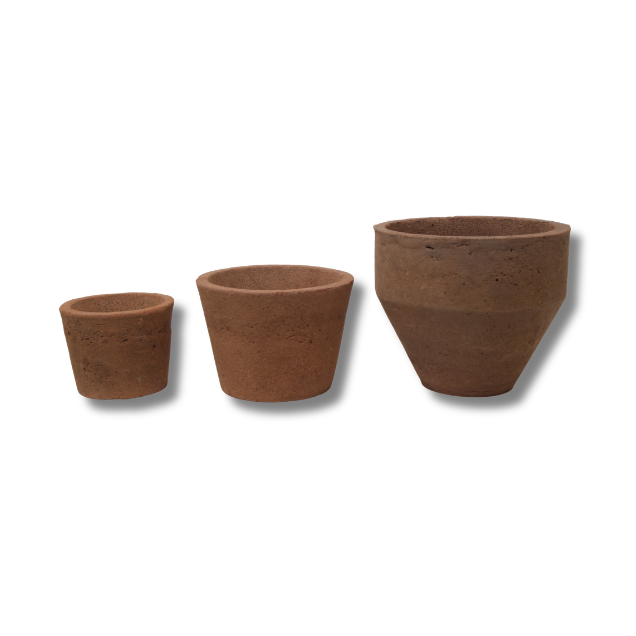

Pouring Cup is a funnel shaped refractory component installed at the top of the mould in foundry casting operations. It is designed to ensure smooth and controlled entry of molten metal into the sprue system. By stabilizing the metal stream at the initial entry point, the Pouring Cup reduces turbulence, prevents air aspiration, and minimizes slag and impurity entry into the mould cavity.
A properly designed pouring cup helps maintain consistent metal flow rate and pressure during pouring. This improves casting quality by reducing surface defects, blowholes, and oxide inclusions. It also protects the gating system from erosion and metal splash, ensuring better mould performance and improved yield. The controlled flow provided by the pouring cup supports laminar metal movement, leading to sound and defect free castings.
Manufactured using silica based refractory material with minimum 70% Silica, the product offers reliable thermal stability during high temperature pouring operations. Its balanced strength and controlled physical properties ensure safe handling and structural integrity.
Technical Specifications
| Base Material | Silica Based |
|---|---|
| SiO2 | 70% (Minimum) |
| R2O3 | 20% (Maximum) |
| Transverse Strength | 20 kg/cm^2 (Minimum) |
| Density | 0.70 g/cc (Maximum) |
| Moisture | 1% (Maximum) |
| LOI (Loss on Ignition) | 12% (Maximum) |
