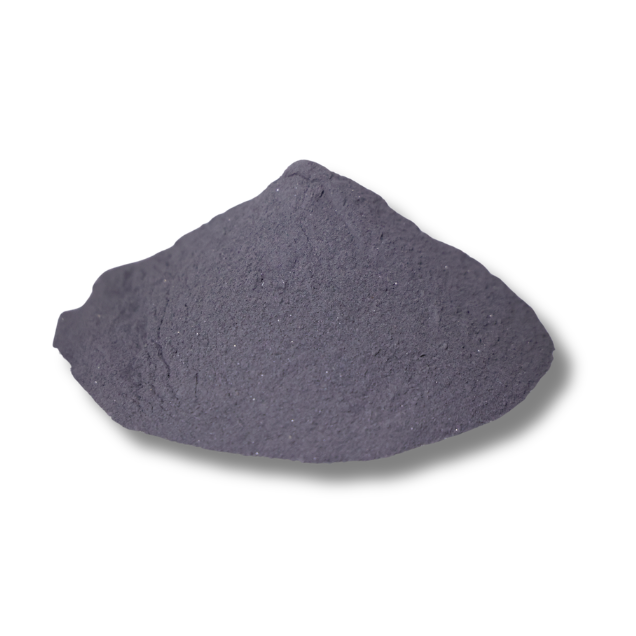

Anti Piping Compound (APC)
Anti Piping Compound is an exothermic powder used in ingot casting to compensate for metal shrinkage during solidification. It restricts primary and secondary piping, improves steel yield, reduces feeder head volume, and helps produce sound castings without shrinkage defects.
Key Features & Applications
- Carbon steel ingot casting
- Alloy steel and special steel ingots
- Large and medium sized ingots
- Feeder head insulation and exothermic topping
Product Overview
Anti Piping Compound (APC) is a high-performance exothermic and insulating powder used in ingot casting to restrict primary and secondary piping within the hot metal portion. By generating controlled expansion at elevated temperatures, APC compensates for metal shrinkage during solidification and helps produce sound castings free from shrinkage defects.
With controlled bulk density, APC ensures uniform surface coverage and consistent performance across the ingot head. Its optimized free aluminium content enables controlled exothermic reaction, sustaining molten metal temperature and ensuring continuous feeding during solidification. This reduces pipe depth, improves steel yield, and allows reduction in feeder head volume.
APC improves casting quality, enhances operational efficiency, and supports higher metal recovery in steel plants.
Our APC Variants
We offer three specialized grades tailored for different casting requirements:
- APC-20S – High expansion grade for maximum shrinkage compensation.
- APC-09S – Balanced expansion for standard steel ingot applications.
- APC-05S – Controlled expansion for moderate feeding conditions.
Each grade is designed with specific expansion dynamics and aluminium content to match casting size and steel grade requirements.
Technical Specifications
| Size | As per Requirement |
|---|---|
| SiO2 | 80% (Min) |
| R2O3 | 4% (Max) |
| Transverse Strength (Min) | 15 kg/cm^2 |
| Permeability | 10 – 25 AFS |
| Bulk Density | 0.65 – 0.80 g/cc |
| LOI | 20% (Max) |
| Moisture | 2% (Max) |
